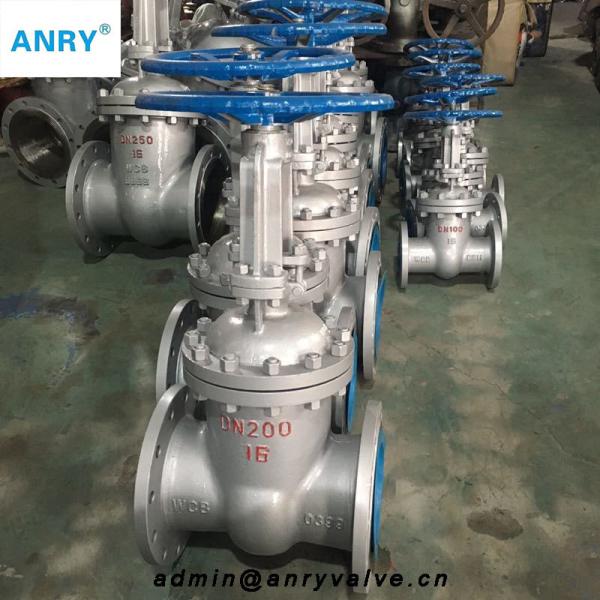

    Casted Steel 20 GOST Gate Valve FLanged RF Handwheel Gear Operated

    Ask Lasest Price
    Brand Name : Anry
    Model Number : Z41H
    Certification : API,CE
    Price : Negotiable
    Delivery Time : 7 DAYS
    Payment Terms : L/C, T/T
    Supply Ability : 10000pcs/month
    • Product Details
    • Company Profile

    Casted Steel 20 GOST Gate Valve FLanged RF Handwheel Gear Operated

    Technical Specifications:


    (1) Design Standard: GOST 5762-2002

    (2) Face to Face Dimension: GOST 3706-93

    (3) End Flange Dimension: GOST 12815-80 End BW Dimension: GB/T 12224

    (4) Structures: Straight Pattern

    (5) Material of Body: GS-C25, S.S 304, S.S 316

    (6) Pressure Rating: PN16, PN25, PN40, PN63,PN160

    (7) Test standard: GOST356-80


    Feature:

    – Straight pattern

    – Outside Screw and York

    – Bolted bonnet

    – Seat in stellite or 13%Cr

    – Available with gear operator

    – Flange Ends

    – Butt-welding Ends

    Actuation: can operate with lever, gear box, pneumatic or electric actuator with handwheel for emergencies Medium: The valve is suitable for several media including water, steam, oil, gas, petrol products, nitric acid, acetic acid, etc. Working temperature: from -46oC or -50oC (stainless steel constructions) and -29oC (carbon steel constructions) up to 600℃
